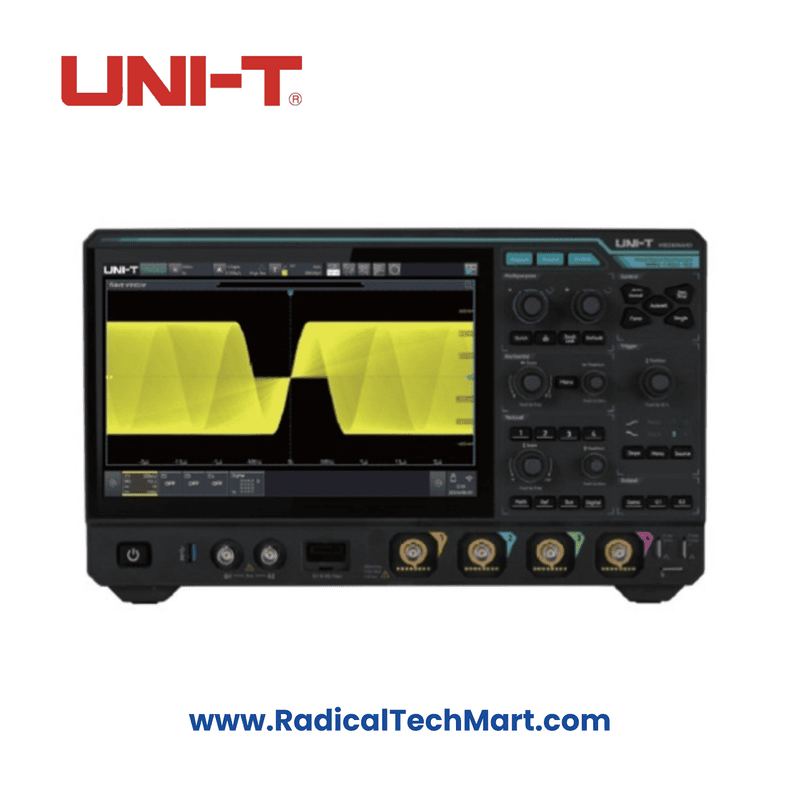

UNI-T MSO3024HD Digital Oscilloscope

The MSO3000HD series high-resolution oscilloscope offers an exceptional performance with a maximum bandwidth of 500 MHz and a real-time sample rate of 2.5 GSa/s. It is equipped with 4 analog channels and 16 digital channels, featuring a memory depth of up to 500 Mpts. The oscilloscope uses exclusive Ultra Phosphor 3.0 technology to achieve a waveform capture rate of up to 1,500,000 waveforms per second, with 256 levels of gray temperature colors. Additionally, it incorporates an innovative digital trigger system for high sensitivity and low jitter.

Key features include:

• Analog channel bandwidth of 200 MHz.
• Real-time sample rate of 2.5 GSa/s.
• 12-bit vertical resolution (with enhanced resolution up to 16-bit).
• Memory depth of up to 500 Mpts.
• Waveform capture rate up to 500,000 wfms/s (and up to 1,500,000 wfms/s in sequence mode).
• Nine built-in instrument functions: digital oscilloscope, logic analyzer, function/arbitrary waveform generator, spectrum analyzer, digital voltmeter, frequency meter, protocol analyzer, bode plot analyzer, and power analyzer.
• Uninterrupted hardware real-time waveform recording and analysis with a maximum of 125,000 frames.
• Enhanced FFT capability of up to 4 million points.
• Support for ERES (enhanced resolution) up to 4 bits.
• 54 types of parameter measurements, with the ability to display histogram and line graph data.
• Multi-channel, multi-window display.
• Multi-channel 7-digit hardware frequency meter.
• DVM multi-channel RMS measurements (DC, AC RMS, and DC+AC RMS).
• Serial protocol triggering and decoding functions for protocols such as RS232/UART, I2C, SPI, CAN, CAN-FD, LIN, FlexRay, Audio, MIL-STD-1553B, Manchester, SENT, and ARINC429.
• Zone trigger for capturing sporadic signals and observing complex waveforms.
• A 10.1-inch, 1280x800 HD capacitive multi-touch screen for enhanced visibility and control.
• Built-in web server for remote access and control.

The MSO3000HD series also comes with a 2-channel, 50 MHz, 250 MSa/s arbitrary waveform generator and supports up to 54 automatic measurements. The warranty is provided according to the brand's policy.
